三洋壓縮機的特點(渦旋式)
三洋渦旋壓縮機產品特點

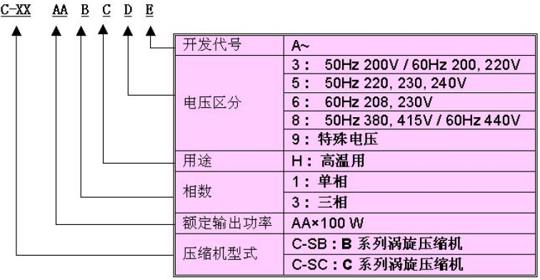

三洋渦旋壓縮機型號解析：(例如:C-SBX215H38A)
1.壓縮機外觀涂裝
2.壓縮機說明(壓縮機銘牌包含如下項目)
3.記號的使用說明
三洋壓縮機維修中的注意事項：
技術參數(適用于歐洲和中國的電源制式)
| 制冷劑 | 輸出功率 | 排氣量 | 電源制式 | 壓縮機代號 | 壓縮機型號 | 制冷量 | ||||
| 50Hz | 60Hz | |||||||||
| HP | cm3/rev | Ph | Hz | V | kW | kW | ||||
| R22 | 3.5 | 55.6 | 3 | 50/60 | 200/200,220 | 809 830 83 | C-SB263H3A | 9.9 | 12.0 | |
| 4 | 66.7 | 3 | 50/60 | 200/200,220 | 809 841 83 | C-SB303H3B | 11.6 | 14.1 | ||
| 5 | 83.4 | 3 | 50/60 | 200/200,220 | 809 851 83 | C-SB373H3B | 14.5 | 17.9 | ||
| 6 | 100.0 | 3 | 50/60 | 200/200,220 | 809 861 83 | C-SB453H3B | 17.7 | 21.5 | ||
| R407C | 4 | 66.7 | 3 | 50/60 | 200/200,220 | 809 941 83 | C-SBN303H3B | 11.4 | 13.9 | |
| 5 | 83.4 | 3 | 50/60 | 200/200,220 | 809 951 83 | C-SBN373H3B | 14.9 | 17.6 | ||
| 6 | 100.0 | 3 | 50/60 | 200/200,220 | 809 961 83 | C-SBN453H3B | 17.7 | 20.9 | ||
| R410A | 4 | 40.0 | 3 | 50/60 | 200/200,220 | 809 943 83 | C-SBN303H3D | 9.9 | 12.2 | |
| 40.0 | 3 | 50/60 | 200/200,220 | 809 944 83 | *1 | C-SBN303H3E | 9.9 | 12.2 | ||
| 5 | 55.6 | 3 | 50/60 | 200/200,220 | 809 953 83 | C-SBN373H3D | 14.2 | 17.1 | ||
| 55.6 | 3 | 50/60 | 200/200,220 | 809 954 83 | *1 | C-SBN373H3E | 14.2 | 17.1 | ||
| 6 | 66.7 | 3 | 50/60 | 200/200,220 | 809 963 83 | C-SBN453H3D | 16.7 | 20.3 | ||
| 66.7 | 3 | 50 | 380,415 | 809 965 88 | C-SBN453H8F | 16.4 | 56.0 | |||
| 66.7 | 3 | 50 | 380,415 | 809 967 88 | *1 | C-SBN453H8H | 16.4 | 56.0 | ||
| 7 | 77.4 | 3 | 50 | 380,415 | 809 973 88 | C-SBN523H8D | 19.2 | 65.6 | ||
| 77.4 | 3 | 50 | 380,415 | 809 975 88 | C-SBN523H8F | 19.2 | 65.6 | |||
| 77.4 | 3 | 50 | 380,415 | 809 977 88 | *1 | C-SBN523H8H | 19.2 | 65.6 | ||
| R制冷劑 | 輸出功率 | 排氣量ement | 電源制式 | Compressor Code | Compressor Model | 制冷量 | ||||
| 60Hz | 60Hz | |||||||||
| HP | cm3/rev | Ph | Hz | V | kW | x1000BTU/h | ||||
| R22 | 3.5 | 51.6 | 1 | 60 | 208,230 | 809 832 46 | C-SB261H6C | 11.2 | 38.2 | |
| 51.6 | 3 | 60 | 208,230 | 809 832 86 | C-SB263H6C | 11.2 | 38.2 | |||
| 51.6 | 3 | 60 | 440,460 | 809 831 88 | C-SB263H8B | 11.2 | 38.2 | |||
| 51.6 | 3 | 60 | 380 | 809 831 89 | C-SB263H9B | 11.2 | 38.2 | |||
| 55.6 | 1 | 60 | 208,230 | 809 830 46 | *3 | C-SB261H6A | 11.8 | 40.3 | ||
| 55.6 | 1 | 60 | 208,230 | 809 831 46 | C-SB261H6B | 11.8 | 40.3 | |||
| 55.6 | 3 | 60 | 208,230 | 809 831 86 | C-SB263H6B | 12.0 | 41.0 | |||
| 55.6 | 3 | 60 | 440,460 | 809 830 88 | C-SB263H8A | 12.0 | 41.0 | |||
| 55.6 | 3 | 60 | 380 | 809 830 89 | C-SB263H9A | 12.0 | 41.0 | |||
| 4 | 66.7 | 1 | 60 | 208,230 | 809 840 46 | *3 | C-SB301H6A | 14.5 | 49.5 | |
| 66.7 | 1 | 60 | 208,230 | 809 841 46 | C-SB301H6B | 14.5 | 49.5 | |||
| 66.7 | 3 | 60 | 208,230 | 809 841 86 | C-SB303H6B | 14.5 | 49.5 | |||
| 66.7 | 3 | 60 | 208,230 | 809 846 86 | *1 | C-SB303H6G | 14.5 | 49.5 | ||
| 66.7 | 3 | 60 | 440,460 | 809 840 88 | C-SB303H8A | 14.1 | 48.1 | |||
| 66.7 | 3 | 60 | 440,460 | 809 846 88 | *1 | C-SB303H8G | 14.1 | 48.1 | ||
| 66.7 | 3 | 60 | 380 | 809 840 89 | C-SB303H9A | 14.1 | 48.1 | |||
| 66.7 | 3 | 60 | 380 | 809 846 89 | *1 | C-SB303H9G | 14.1 | 48.1 | ||
| 4.5 | 77.4 | 1 | 60 | 208,230 | 809 842 46 | *3 | C-SB351H6A | 16.7 | 57.0 | |
| 77.4 | 1 | 60 | 208,230 | 809 843 46 | C-SB351H6B | 16.7 | 57.0 | |||
| 77.4 | 3 | 60 | 208,230 | 809 843 86 | C-SB353H6B | 17.0 | 58.0 | |||
| 77.4 | 3 | 60 | 440,460 | 809 842 88 | C-SB353H8A | 16.7 | 57.0 | |||
| 5 | 83.4 | 1 | 60 | 208,230 | 809 850 46 | *3 | C-SB371H6A | 18.1 | 61.8 | |
| 83.4 | 3 | 60 | 208,230 | 809 851 86 | C-SB373H6B | 18.1 | 61.8 | |||
| 83.4 | 3 | 60 | 208,230 | 809 856 86 | *1 | C-SB373H6G | 18.1 | 61.8 | ||
| 83.4 | 3 | 60 | 440,460 | 809 850 88 | C-SB373H8A | 17.9 | 61.1 | |||
| 83.4 | 3 | 60 | 440,460 | 809 856 88 | *1 | C-SB373H8G | 17.9 | 61.1 | ||
| 83.4 | 3 | 60 | 380 | 809 850 89 | C-SB373H9A | 17.9 | 61.1 | |||
| 83.4 | 3 | 60 | 380 | 809 856 89 | *1 | C-SB373H9G | 17.9 | 61.1 | ||
| 6 | 100.0 | 3 | 60 | 208,230 | 809 861 86 | C-SB453H6B | 21.5 | 73.4 | ||
| 100.0 | 3 | 60 | 208,230 | 809 866 86 | *1 | C-SB453H6G | 21.5 | 73.4 | ||
| 100.0 | 3 | 60 | 440,460 | 809 860 88 | C-SB453H8A | 21.5 | 73.4 | |||
| 100.0 | 3 | 60 | 440,460 | 809 866 88 | *1 | C-SB453H8G | 21.5 | 73.4 | ||
| 100.0 | 3 | 60 | 380 | 809 860 89 | C-SB453H9A | 21.5 | 73.4 | |||
| 100.0 | 3 | 60 | 380 | 809 866 89 | *1 | C-SB453H9G | 21.5 | 73.4 | ||
| R407C | 4 | 66.7 | 3 | 60 | 440,460 | 809 940 88 | C-SBN303H8A | 14.3 | 48.8 | |
| 66.7 | 3 | 60 | 440,460 | 809 946 88 | *1 | C-SBN303H9G | 14.3 | 48.8 | ||
| 5 | 83.4 | 3 | 60 | 440,, 460 | 809 950 88 | C-SBN373H8A | 17.8 | 60.8 | ||
| 83.4 | 3 | 60 | 440,460 | 809 956 88 | *1 | C-SBN373H8G | 17.8 | 60.8 | ||
| 6 | 100.0 | 3 | 60 | 440,460 | 809 960 88 | C-SBN453H8A | 21.3 | 72.7 | ||
| 100.0 | 3 | 60 | 440,460 | 809 966 88 | *1 | C-SBN453H8G | 21.3 | 72.7 | ||
| R410A | 4 | 40.0 | 3 | 60 | 440,460 | 809 943 88 | C-SBN303H8D | 12.2 | 41.7 | |
| 40.0 | 3 | 60 | 440,460 | 809 947 88 | *1 | C-SBN303H8H | 12.2 | 41.7 | ||
| 5 | 55.6 | 3 | 60 | 440,460 | 809 953 88 | C-SBN373H8D | 17.1 | 58.4 | ||
| 55.6 | 3 | 60 | 440,460 | 809 955 88 | *1 | C-SBN373H8H | 17.1 | 58.4 | ||
| 6 | 66.7 | 3 | 60 | 440,460 | 809 963 88 | C-SBN453H8D | 20.3 | 69.3 | ||
| 66.7 | 3 | 60 | 440,460 | 809 965 88 | *1 | C-SBN453H8H | 20.3 | 69.3 | ||
| R制冷劑 | 輸出功率 | 排氣量 | 電源制式 | 壓縮機代號 | 壓縮機型號 | 制冷量 | ||||
| 50Hz | 50Hz | |||||||||
| HP | cm3/rev | Ph | Hz | V | kW | x1000 BTU/h |
||||
| R22 | 8 | 131.9 | 3 | 50 | 380,415 | 809 284 88 | C-SC583H8H | 23.2 | 79.2 | |
| 137.0 | 3 | 50 | 220,230,240 | 809 281 85 | C-SC603H5H | 24.3 | 83.0 | |||
| 137.0 | 3 | 50 | 380,415 | 809 281 88 | C-SC603H8H | 24.3 | 83.0 | |||
| 137.0 | 3 | 50 | 380,415 | 809 283 88 | *1 | C-SC603H8K | 24.3 | 83.0 | ||
| 9 | 148.8 | 3 | 50 | 380,415 | 809 291 88 | C-SC673H8H | 26.2 | 89.5 | ||
| 10 | 171.2 | 3 | 50 | 220,230,240 | 809 201 85 | C-SC753H5H | 30.7 | 104.8 | ||
| 171.2 | 3 | 50 | 380,415 | 809 201 88 | C-SC753H8H | 30.7 | 104.8 | |||
| 171.2 | 3 | 50 | 380,415 | 809 203 88 | *1 | C-SC753H8K | 30.7 | 104.8 | ||
| 12 | 197.0 | 3 | 50 | 380,415 | 809 224 88 | C-SC863H8H | 35.2 | 120.2 | ||
| 205.4 | 3 | 50 | 220,230,240 | 809 221 85 | C-SC903H5H | 36.0 | 122.9 | |||
| 205.4 | 3 | 50 | 380,415 | 809 221 88 | C-SC903H8H | 36.0 | 122.9 | |||
| 205.4 | 3 | 50 | 380,415 | 809 223 88 | *1 | C-SC903H8K | 36.0 | 122.9 | ||
| R407C | 8 | 137.0 | 3 | 50 | 380,415 | 809 181 88 | C-SCN603H8H | 24.3 | 83.0 | |
| 137.0 | 3 | 50 | 380,415 | 809 183 88 | *1 | C-SCN603H8K | 24.3 | 83.0 | ||
| 10 | 171.2 | 3 | 50 | 380,415 | 809 101 88 | C-SCN753H8H | 30.0 | 102.4 | ||
| 171.2 | 3 | 50 | 380,415 | 809 103 88 | *1 | C-SCN753H8K | 30.0 | 102.4 | ||
| 12 | 205.4 | 3 | 50 | 380,415 | 809 121 88 | C-SCN903H8H | 34.8 | 118.8 | ||
| 205.4 | 3 | 50 | 380,415 | 809 123 88 | *1 | C-SCN903H8K | 34.8 | 118.8 | ||
| R制冷劑 | 輸出功率 | 排氣量 | 電源制式 | 壓縮機代號 | 壓縮機型號 | 制冷量 | ||||
| 60Hz | 60Hz | |||||||||
| HP | cm3/rev | Ph | Hz | V | kW | x1000 BTU/h |
||||
| R22 | 8 | 131.9 | 3 | 60 | 440,460 | 809 284 88 | C-SC583H8H | 27.9 | 95.3 | |
| 131.9 | 3 | 60 | 208,230 | 809 284 86 | C-SC583H6H | 27.9 | 95.3 | |||
| 137.0 | 3 | 60 | 208,230 | 809 281 86 | C-SC603H6H | 30.5 | 104.1 | |||
| 137.0 | 3 | 60 | 208,230 | 809 283 86 | *1 | C-SC603H6K | 30.5 | 104.1 | ||
| 137.0 | 3 | 60 | 440,460 | 809 281 88 | C-SC603H8H | 29.6 | 101.1 | |||
| 137.0 | 3 | 60 | 440,460 | 809 283 88 | *1 | C-SC603H8K | 29.6 | 101.1 | ||
| 137.0 | 3 | 60 | 380 | 809 281 89 | C-SC603H9H | 30.5 | 104.1 | |||
| 137.0 | 3 | 60 | 380 | 809 283 89 | *1 | C-SC603H9K | 30.5 | 104.1 | ||
| 10 | 171.2 | 3 | 60 | 208,230 | 809 201 86 | C-SC753H6H | 37.8 | 129.1 | ||
| 171.2 | 3 | 60 | 208,230 | 809 203 86 | *1 | C-SC753H6K | 37.8 | 129.1 | ||
| 171.2 | 3 | 60 | 440,460 | 809 201 88 | C-SC753H8H | 37.2 | 127.0 | |||
| 171.2 | 3 | 60 | 440,460 | 809 203 88 | *1 | C-SC753H8K | 37.2 | 127.0 | ||
| 171.2 | 3 | 60 | 380 | 809 201 89 | C-SC753H9H | 37.8 | 129.1 | |||
| 171.2 | 3 | 60 | 380 | 809 203 89 | *1 | C-SC753H9K | 37.8 | 129.1 | ||
| R407C | 8 | 137.0 | 3 | 60 | 440,460 | 809 181 88 | C-SCN603H8H | 29.1 | 99.4 | |
| 137.0 | 3 | 60 | 440,460 | 809 183 88 | *1 | C-SCN603H8K | 29.1 | 99.4 | ||
| 10 | 171.2 | 3 | 60 | 440,460 | 809 101 88 | C-SCN753H8H | 36.2 | 123.6 | ||
| 171.2 | 3 | 60 | 440,460 | 809 103 88 | *1 | C-SCN753H8K | 36.2 | 123.6 | ||
| R制冷劑 | 輸出功率 | 排氣量 | 電源制式 | 壓縮機代號 | 壓縮機型號 | 制冷量 | ||||
| 50Hz | 50Hz | |||||||||
| HP | cm3/rev | Ph | Hz | V | kW | x1000 BTU/h |
||||
| R22 | 8 | 131.9 | 3 | 50 | 380,415 | 809 284 88 | C-SC583H8H | 23.2 | 79.2 | |
| 137.0 | 3 | 50 | 220,230,240 | 809 281 85 | C-SC603H5H | 24.3 | 83.0 | |||
| 137.0 | 3 | 50 | 380,415 | 809 281 88 | C-SC603H8H | 24.3 | 83.0 | |||
| 137.0 | 3 | 50 | 380,415 | 809 283 88 | *1 | C-SC603H8K | 24.3 | 83.0 | ||
| 9 | 148.8 | 3 | 50 | 380,415 | 809 291 88 | C-SC673H8H | 26.2 | 89.5 | ||
| 10 | 171.2 | 3 | 50 | 220,230,240 | 809 201 85 | C-SC753H5H | 30.7 | 104.8 | ||
| 171.2 | 3 | 50 | 380,415 | 809 201 88 | C-SC753H8H | 30.7 | 104.8 | |||
| 171.2 | 3 | 50 | 380,415 | 809 203 88 | *1 | C-SC753H8K | 30.7 | 104.8 | ||
| 12 | 197.0 | 3 | 50 | 380,415 | 809 224 88 | C-SC863H8H | 35.2 | 120.2 | ||
| 205.4 | 3 | 50 | 220,230,240 | 809 221 85 | C-SC903H5H | 36.0 | 122.9 | |||
| 205.4 | 3 | 50 | 380,415 | 809 221 88 | C-SC903H8H | 36.0 | 122.9 | |||
| 205.4 | 3 | 50 | 380,415 | 809 223 88 | *1 | C-SC903H8K | 36.0 | 122.9 | ||
| R407C | 8 | 137.0 | 3 | 50 | 380,415 | 809 181 88 | C-SCN603H8H | 24.3 | 83.0 | |
| 137.0 | 3 | 50 | 380,415 | 809 183 88 | *1 | C-SCN603H8K | 24.3 | 83.0 | ||
| 10 | 171.2 | 3 | 50 | 380,415 | 809 101 88 | C-SCN753H8H | 30.0 | 102.4 | ||
| 171.2 | 3 | 50 | 380,415 | 809 103 88 | *1 | C-SCN753H8K | 30.0 | 102.4 | ||
| 12 | 205.4 | 3 | 50 | 380,415 | 809 121 88 | C-SCN903H8H | 34.8 | 118.8 | ||
| 205.4 | 3 | 50 | 380,415 | 809 123 88 | *1 | C-SCN903H8K | 34.8 | 118.8 | ||
| R制冷劑 | 輸出功率 | 排氣量 | 電源制式 | 壓縮機代號 | 壓縮機型號 | 制冷量 | ||||
| 60Hz | 60Hz | |||||||||
| HP | cm3/rev | Ph | Hz | V | kW | x1000 BTU/h |
||||
| R22 | 8 | 131.9 | 3 | 60 | 440,460 | 809 284 88 | C-SC583H8H | 27.9 | 95.3 | |
| 131.9 | 3 | 60 | 208,230 | 809 284 86 | C-SC583H6H | 27.9 | 95.3 | |||
| 137.0 | 3 | 60 | 208,230 | 809 281 86 | C-SC603H6H | 30.5 | 104.1 | |||
| 137.0 | 3 | 60 | 208,230 | 809 283 86 | *1 | C-SC603H6K | 30.5 | 104.1 | ||
| 137.0 | 3 | 60 | 440,460 | 809 281 88 | C-SC603H8H | 29.6 | 101.1 | |||
| 137.0 | 3 | 60 | 440,460 | 809 283 88 | *1 | C-SC603H8K | 29.6 | 101.1 | ||
| 137.0 | 3 | 60 | 380 | 809 281 89 | C-SC603H9H | 30.5 | 104.1 | |||
| 137.0 | 3 | 60 | 380 | 809 283 89 | *1 | C-SC603H9K | 30.5 | 104.1 | ||
| 10 | 171.2 | 3 | 60 | 208,230 | 809 201 86 | C-SC753H6H | 37.8 | 129.1 | ||
| 171.2 | 3 | 60 | 208,230 | 809 203 86 | *1 | C-SC753H6K | 37.8 | 129.1 | ||
| 171.2 | 3 | 60 | 440,460 | 809 201 88 | C-SC753H8H | 37.2 | 127.0 | |||
| 171.2 | 3 | 60 | 440,460 | 809 203 88 | *1 | C-SC753H8K | 37.2 | 127.0 | ||
| 171.2 | 3 | 60 | 380 | 809 201 89 | C-SC753H9H | 37.8 | 129.1 | |||
| 171.2 | 3 | 60 | 380 | 809 203 89 | *1 | C-SC753H9K | 37.8 | 129.1 | ||
| R407C | 8 | 137.0 | 3 | 60 | 440,460 | 809 181 88 | C-SCN603H8H | 29.1 | 99.4 | |
| 137.0 | 3 | 60 | 440,460 | 809 183 88 | *1 | C-SCN603H8K | 29.1 | 99.4 | ||
| 10 | 171.2 | 3 | 60 | 440,460 | 809 101 88 | C-SCN753H8H | 36.2 | 123.6 | ||
| 171.2 | 3 | 60 | 440,460 | 809 103 88 | *1 | C-SCN753H8K | 36.2 | 123.6 | ||
技術參數(適用于日本電源制式)
| R制冷劑 | 輸出功率 | 排氣量 | 電源制式 | 壓縮機代號 | 壓縮機型號 | 制冷量 | ||||
| 50Hz | 60Hz | |||||||||
| HP | cm3/rev | Ph | Hz | V | kW | kW | ||||
| R22 | 8 | 137.0 | 3 | 50/60 | 200/200,220 | 809 280 83 | *2 | C-SC603H3G | 24.5 | 29.1 |
| 10 | 171.2 | 3 | 50/60 | 200/200,220 | 809 200 83 | *2 | C-SC753H3G | 30.9 | 36.2 | |
| 12 | 205.4 | 3 | 50 | 200 | 809 220 83 | *2 | C-SC763H3G | 36.3 | - | |
| R407C | 8 | 137.0 | 3 | 50/60 | 200/200,220 | 809 180 83 | *2 | C-SCN603H3G | 24.5 | 28.8 |
| 10 | 171.2 | 3 | 50/60 | 200/200,220 | 809 100 83 | *2 | C-SCN753H3G | 30.7 | 35.9 | |
| 12 | 205.4 | 3 | 50 | 200 | 809 120 83 | *2 | C-SCN763H3G | 36.0 | ||
【三洋壓縮機】詢價
了解三洋壓縮機價格請撥打以下電話聯系我們！
或通過網站右方點擊“在線交流”或點擊企鵝圖標發起“QQ交談”等方式在線咨詢。
【三洋壓縮機】技術交流
技術交流歡迎撥打手機號：13689526478 或添加 QQ：2403747562 微信號：13689526478
三洋簡介
三洋（SANYO），是日本的一家有60年歷史的大型企業集團，總部位于日本大阪，產品涉及顯示器、手機、數碼相機、機械、生物制藥等眾多領域。
三洋電機是日本Panasonic旗下的電器公司，全球擁有324間辦公室及工廠與約100,000名雇員。
三洋電機由井植歲男（1902年－1969年）于1947年成立，并于1950年組成株式會社，創辦人為松下幸之助的內弟以及松下電器前雇員。該公司的名字于日語中意思為“三個海洋”，指的是該公司的創辦人有將他們的產品銷售到世界各地，橫跨大西洋、太平洋與印度洋的抱負。 (注：資料來自網絡)
三洋壓縮機歷史
1960年：東京三洋電機開始生產壓縮機及冰激凌儲藏柜,率先開發1/10馬力2極密閉型壓縮機。
Copyright ? 深圳市瀚信德制冷科技有限公司 地址：深圳市寶安區松崗街道沙浦廣進路34號 郵編：518103 備案號：粵ICP備14071208號
